How to Design an Efficient Beverage Packaging Line for Maximum Scalability?
What Makes Beverage Line Production Systems Efficient and Scalable?
Beverage manufacturers face growing pressure to increase production output, maintain consistent product quality, reduce operating costs, and adapt quickly to changing market demands. Whether producing bottled water, carbonated soft drinks, juice, dairy beverages, or canned drinks, manufacturers need production systems that deliver reliable performance today while supporting future growth.
The key lies in more than selecting individual machines with high rated speeds. An efficient beverage production line depends on coordinated equipment performance, intelligent material flow, reliable automation, and a packaging system designed around actual production requirements.
From filling and capping to labeling, secondary packaging, and palletizing, every stage affects the performance of the entire line. Poorly matched equipment, frequent changeovers, unplanned downtime, and packaging bottlenecks can prevent manufacturers from achieving their target output.
This article explores the essential factors that make beverage line production systems more efficient, reliable, and scalable—and explains how an integrated packaging strategy can help manufacturers build a stronger foundation for long-term growth.
1. Optimize Production Line Layout and Equipment Capacity
Balance throughput across every production stage
A beverage production line operates as an interconnected system. Its overall output is influenced by the interaction between filling, labeling, secondary packaging, conveying, and palletizing operations.
A high-speed filling machine cannot deliver its full production potential if downstream equipment cannot process bottles at a comparable rate. Similarly, insufficient accumulation capacity between machines can cause upstream equipment to stop whenever a downstream station experiences a short interruption.
To improve line efficiency, manufacturers should:
Balance equipment capacity: Match the rated speeds of individual machines to the required production output and the expected operating conditions.
Optimize equipment layout: Minimize unnecessary conveyor distances, bottlenecks, and material handling steps.
Introduce appropriate accumulation zones: Use conveyor buffers to absorb short-term variations in machine performance.
Evaluate the entire line: Consider actual operating speed, changeover time, planned maintenance, and downstream packaging capacity—not just the maximum speed listed on individual machine specifications.
For example, a line designed around a high-speed filler may require additional conveying capacity, a suitable labeling solution, and a correctly sized case packer and palletizer to maintain consistent product flow.
A practical approach is to establish a line-wide capacity model before purchasing equipment. This helps manufacturers identify constraints early and avoid investing in machinery that cannot operate effectively within the complete system.
Monitor performance at critical control points
Production monitoring also plays an important role in improving operational efficiency.
Depending on the equipment and control architecture, sensors and monitoring systems can track parameters such as filling accuracy, capping torque, machine speed, labeling performance, and equipment alarms.
These measurements help operators identify deviations before they develop into more serious production problems.
Useful performance indicators include:
Overall Equipment Effectiveness (OEE),Actual throughput versus target throughput,Unplanned downtime and its root causes,Product rejection and rework rates ,Changeover and cleaning time;
The objective is not simply to run machines faster. It is to increase consistent, saleable output while controlling downtime and waste.
2. Improve Material Handling and Product Flow
Material handling is often an overlooked source of inefficiency in beverage manufacturing. Even when individual machines perform well, inconsistent bottle feeding, conveyor congestion, and poor coordination between production stages can reduce total line output.
Maintain stable container feeding
Bottles, cans, and other containers must reach the filling and packaging stations at a controlled, consistent rate.
Depending on the container format and production layout, manufacturers can use:
Automated container feeding and unscrambling systems,Conveyors with adjustable guides,Accumulation tables and buffering conveyors,
Photoelectric sensors and automated jam detection,Coordinated conveyor speed control;
These solutions help maintain a stable flow of containers while reducing manual intervention and unnecessary machine stops.
Coordinate production and packaging operations
Material flow must remain consistent beyond the filling stage. Filled containers need to move efficiently through labeling, secondary packaging, and end-of-line handling.
For example, a beverage line may use a sleeve labeling machine followed by a shrink wrapper or wraparound case packer. If the labeling and packaging stations are poorly coordinated, finished containers can accumulate excessively or the filler may need to stop.
An integrated line design helps synchronize these operations and makes it easier to identify where additional buffering, conveying capacity, or control adjustments are required.
Reduce handling errors and product damage
Well-designed material handling systems also help protect containers and finished products.
Appropriate conveyor transitions, guide adjustments, grouping mechanisms, and case handling arrangements can reduce bottle tipping, package deformation, and handling-related damage.
For manufacturers handling different bottle sizes or packaging formats, flexible conveying and changeover arrangements are especially valuable.
3. Select the Right Filling, Labeling, and Packaging Equipment
Equipment selection should begin with the product, container, packaging format, and target production capacity—not with machine speed alone.
Filling and capping systems
Filling technology must be suitable for the beverage formulation, container material, hygiene requirements, and operating conditions.
Depending on the application, manufacturers may consider rotary filling systems, aseptic filling technology, or specialized solutions for carbonated beverages.
Important selection criteria include:
Required output and filling accuracy,Product characteristics and filling conditions,Container dimensions and material compatibility,Hygiene and cleanability requirements,Changeover frequency and maintenance accessibility,Integration with upstream and downstream equipment;
Capping performance is equally important. Appropriate cap handling, controlled application torque, and cap-presence inspection can help maintain package integrity and reduce leakage risks.
For manufacturers requiring clean-in-place (CIP) capability, the system design should specify which components support CIP and how the cleaning process is validated.
Labeling systems for different container formats
Labeling requirements vary significantly across beverage categories and packaging designs.
A manufacturer producing multiple bottle shapes or label types may need different technologies for different products.

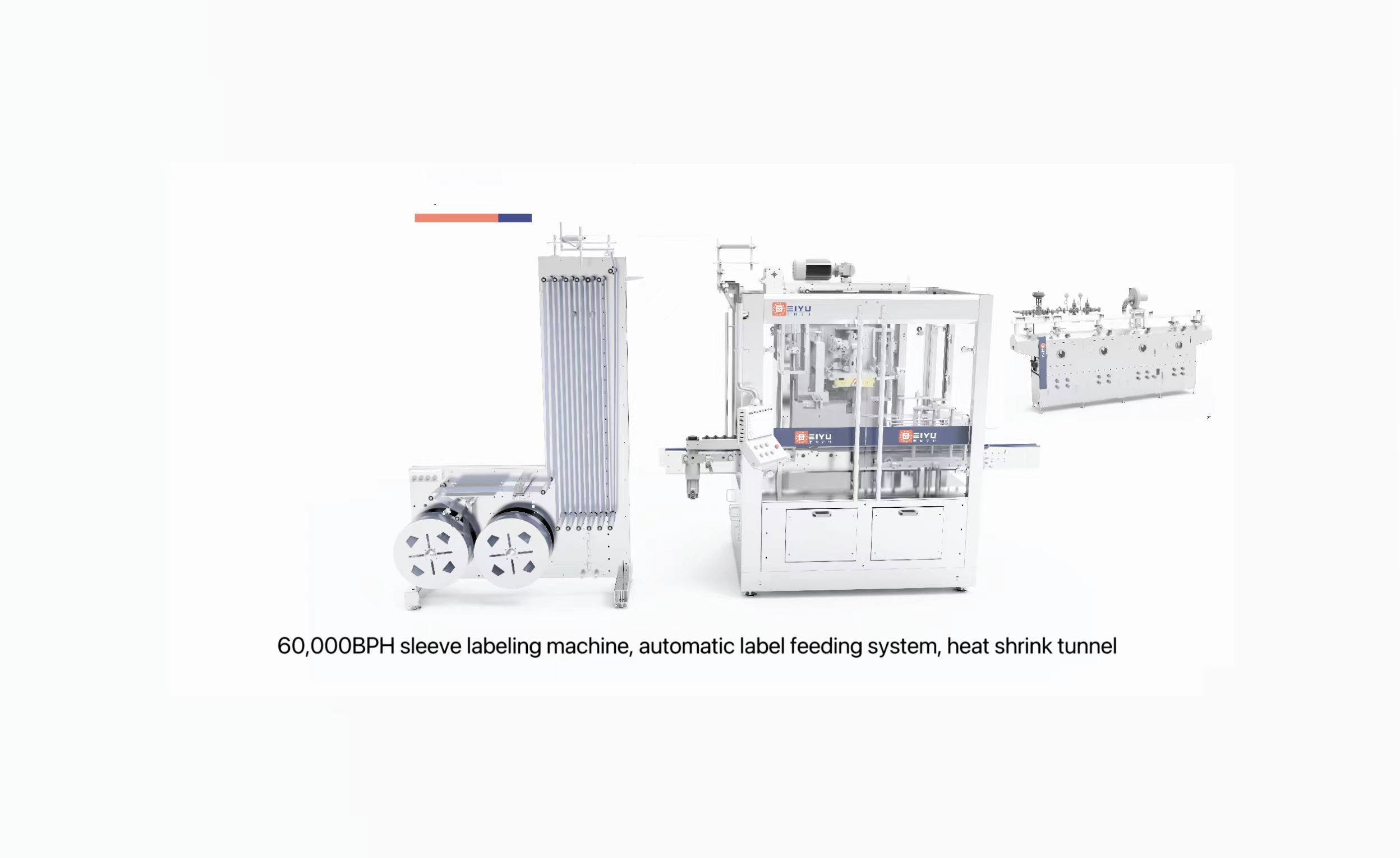

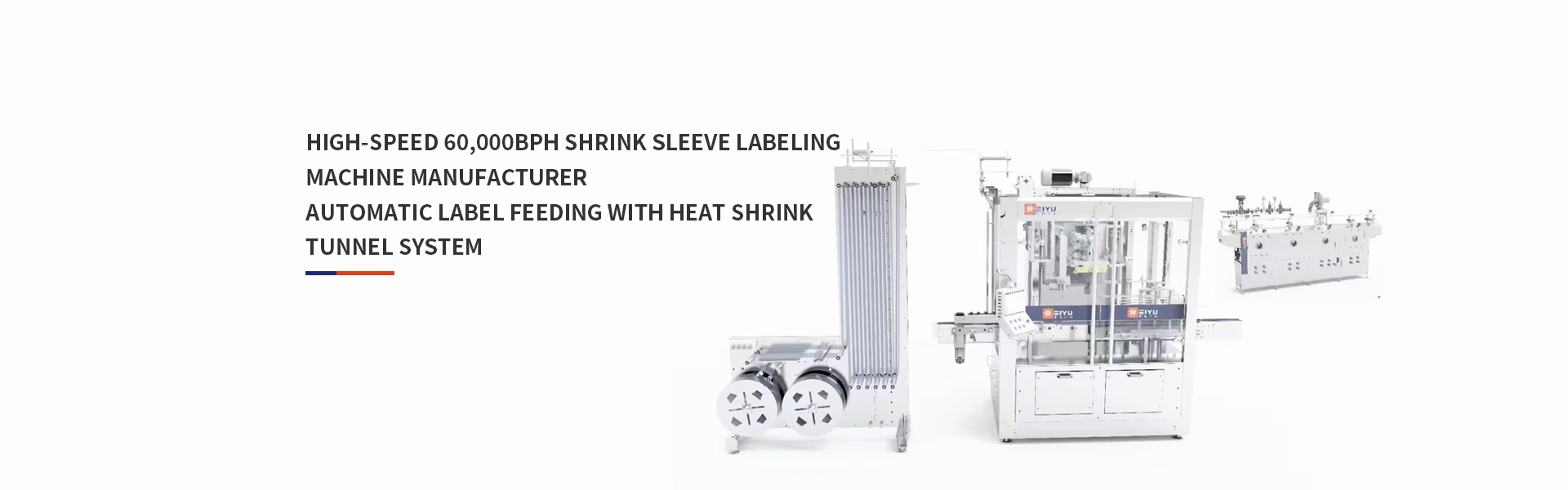

Sleeve labeling machines are suitable for applications requiring full-body or partial-body shrink sleeves, including round, oval, square, and other specially shaped containers, subject to the machine configuration and label material.

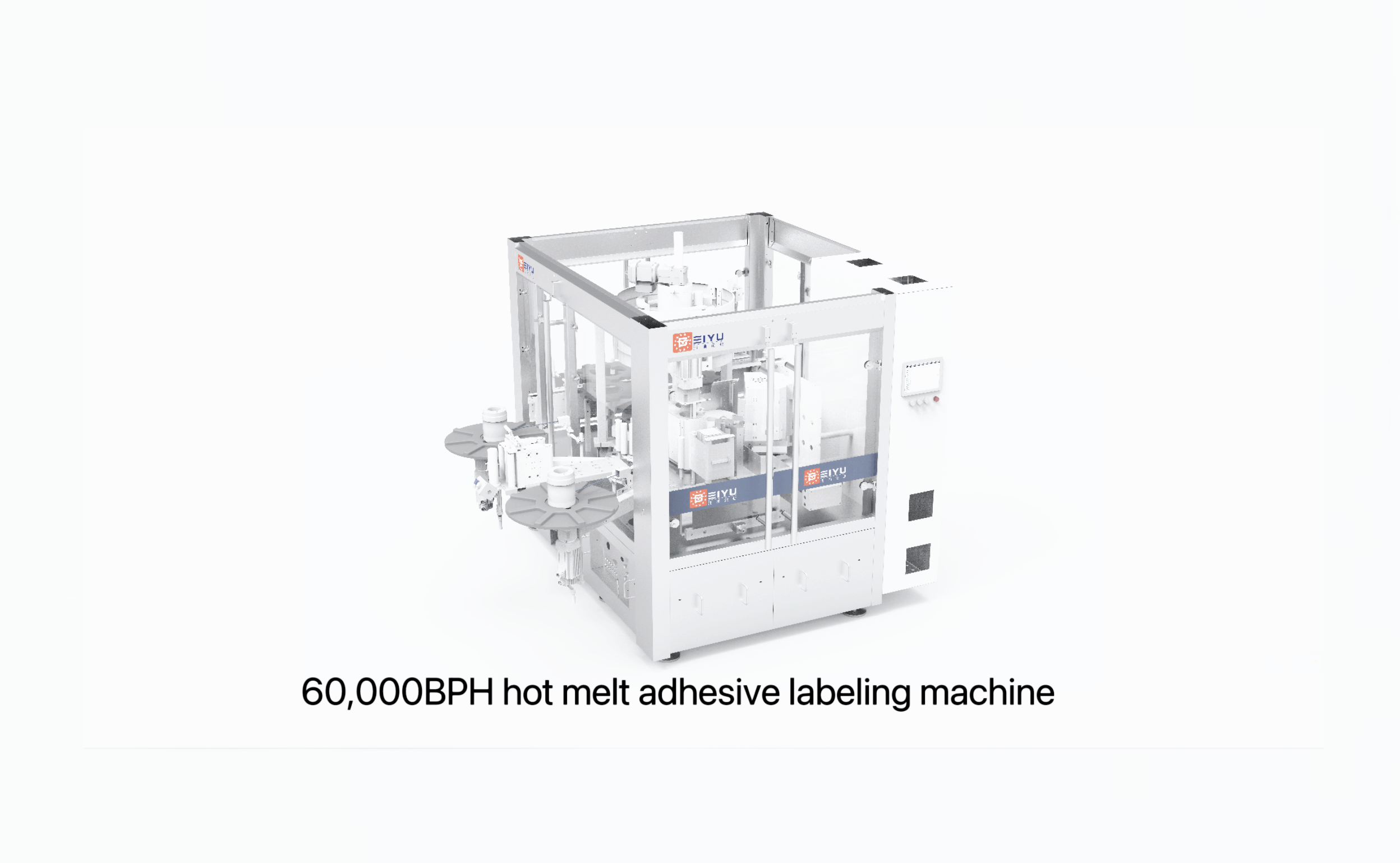

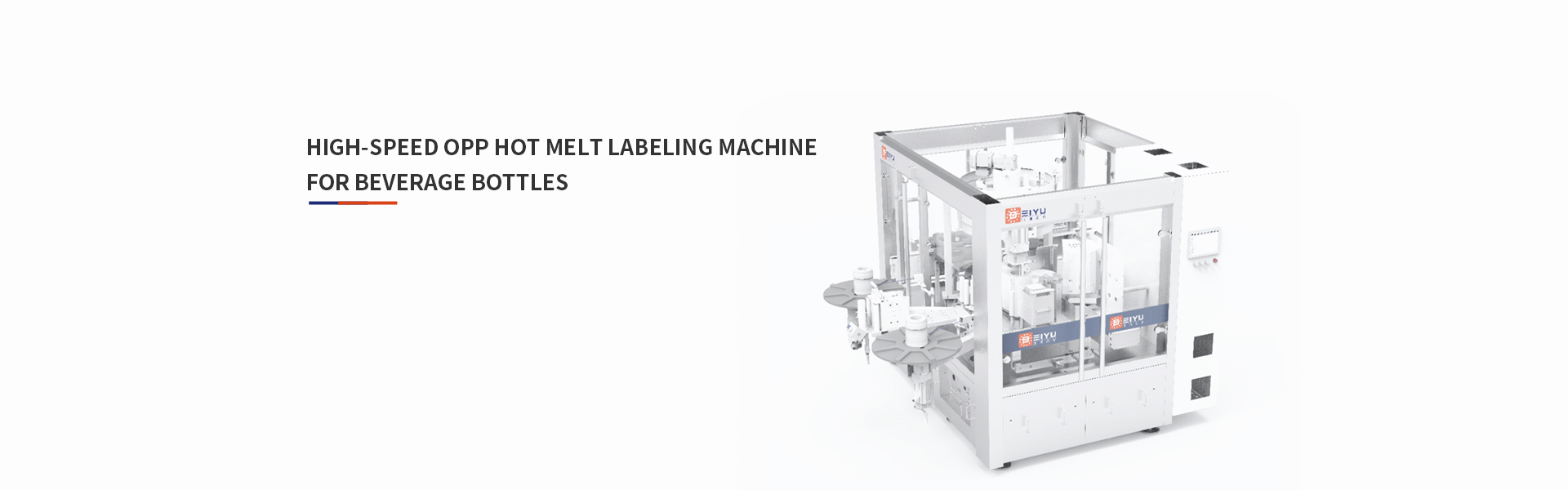

Hot melt labeling machines apply roll-fed labels, commonly OPP or BOPP, using hot melt adhesive. They are often considered for high-volume beverage production where consistent label application and efficient material usage are priorities.
When evaluating labeling equipment, consider:
Container diameter, height, and geometry
Label material and dimensions
Required production speed
Label positioning accuracy
Product changeover requirements
Integration with inspection and downstream packaging systems
Selecting the right labeling technology helps manufacturers balance appearance, operating efficiency, packaging cost, and production flexibility.
Secondary packaging and end-of-line automation
After labeling, products must be grouped, packed, and prepared for storage or transportation.
Depending on the application, the packaging system may include shrink wrapping, wraparound case packing, carton handling, conveying, and palletizing.
These stages are particularly important when manufacturers want to reduce manual handling and increase finished-goods throughput.
For example:

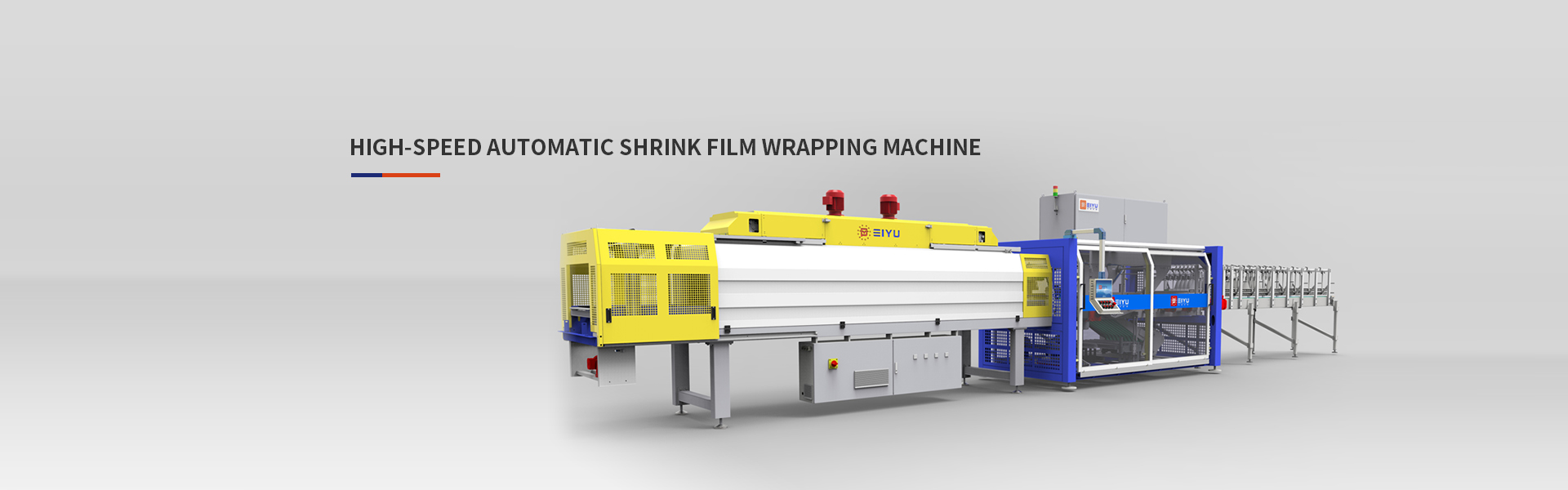

Shrink wrapping systems bundle beverage containers using shrink film for suitable multipack applications.

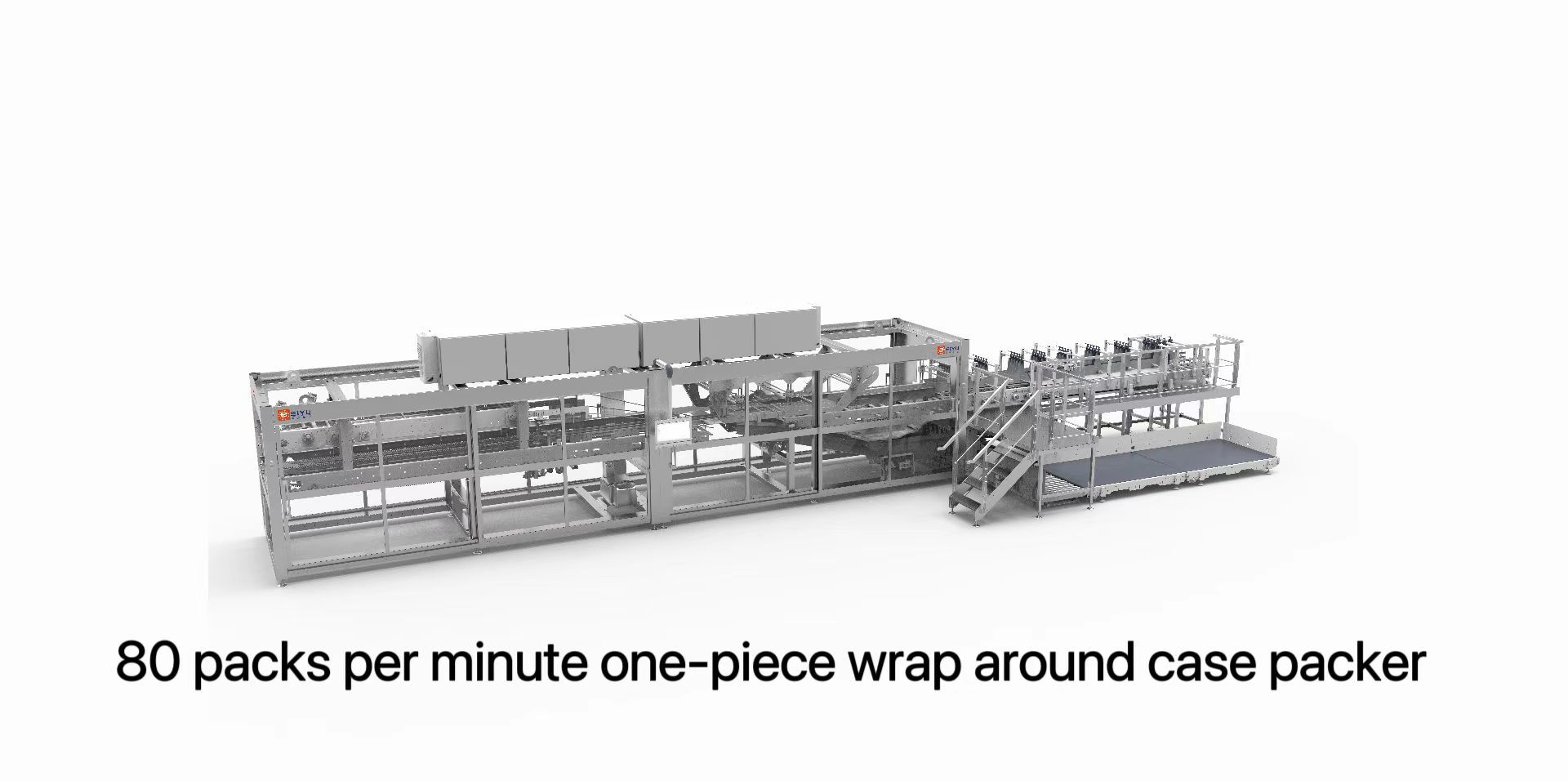

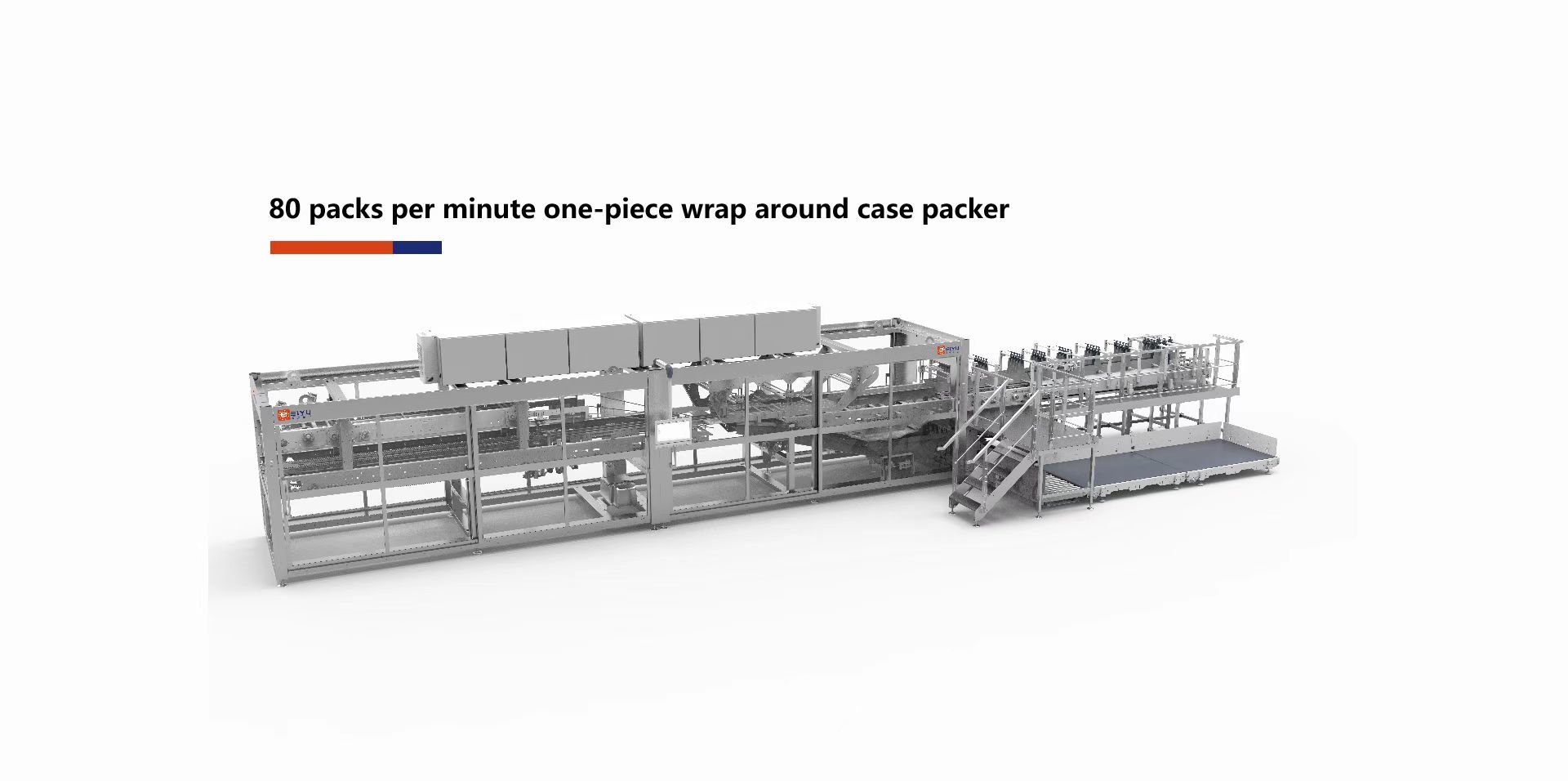

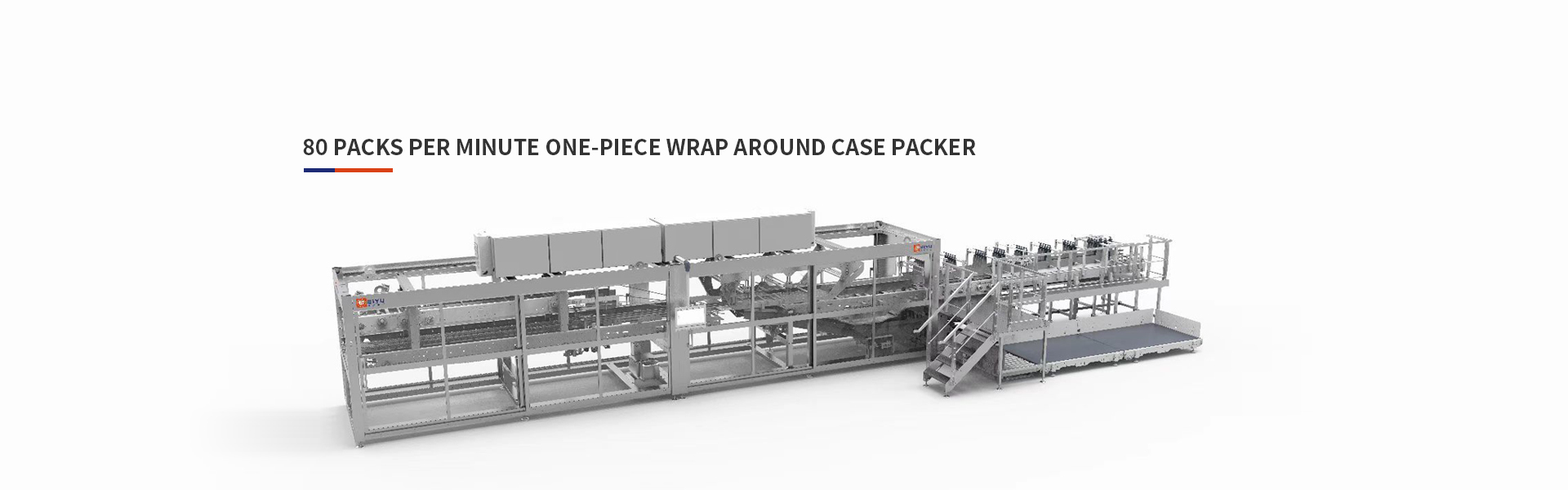

Wraparound case packers form cartons around product groups, supporting compact case packaging for distribution.
Palletizing systems arrange finished cases into stable pallet loads for warehouse handling and shipment.
Integrated conveying systems coordinate product movement between machines and reduce unnecessary manual transfers.
The appropriate solution depends on the product configuration, required case format, packaging material, and logistics requirements.
For high-volume manufacturers, end-of-line automation can be a critical step toward improving production consistency and reducing labor-intensive handling.
4. Integrate Automation and Centralized Control
Automation helps beverage manufacturers coordinate production activities, improve repeatability, and respond more quickly to operational issues.
PLC and HMI integration
Programmable Logic Controllers (PLCs) and Human-Machine Interfaces (HMIs) are widely used to control individual machines and coordinate selected line operations.
Depending on the system architecture, operators can use an HMI to:
Select stored product or packaging recipes
Adjust supported machine parameters
Monitor operating status and alarms
Review production counters and fault information
Support troubleshooting and changeover procedures
When multiple machines are integrated, clearly defined communication and control interfaces help improve coordination between production stages.
However, centralized control does not necessarily mean every machine must use a single PLC. The appropriate architecture depends on the line's complexity, equipment interfaces, safety requirements, and integration scope.
Smart monitoring and data-driven maintenance
Modern automation systems can provide valuable information about machine utilization, recurring faults, and operating conditions.
For example, motor current, vibration measurements, temperature readings, and alarm histories may help maintenance teams identify developing problems.
Predictive maintenance requires appropriate sensors, reliable data collection, and a suitable analytical method. It should not be assumed that every automated line automatically includes AI-based diagnostics or predictive maintenance functionality.
A practical starting point is to collect reliable operating data, classify downtime events, and use the findings to prioritize maintenance improvements.
Effective automation should make production easier to control, troubleshoot, and improve—not simply add technological complexity.
5. Design for Scalability and Faster Changeovers
Beverage demand changes with market conditions, seasonal consumption, product launches, and distribution requirements. A production system should therefore support future expansion without requiring an entirely new line whenever capacity or packaging needs change.
Adopt a modular equipment strategy
A modular approach allows manufacturers to expand or modify selected production stages as business requirements evolve.
Potential strategies include:
Adding packaging modules when demand increases
Expanding conveying capacity around existing bottlenecks
Integrating additional inspection or handling equipment
Designing interfaces that support future machine additions
Reserving sufficient floor space and utility capacity for planned expansion
For example, a beverage producer may initially automate shrink wrapping and later add a case packing or palletizing system as distribution volumes grow.
Such expansion is most effective when equipment interfaces, line controls, layout, and utilities have been considered from the beginning.
Reduce changeover time
Manufacturers producing multiple beverage sizes or packaging formats need efficient and repeatable changeovers.
Useful design features may include:
Quick-adjustment guides and format parts
Clearly identified changeover components
Tool-less adjustments where technically appropriate
Stored machine recipes and parameter settings
Standardized changeover procedures
The actual time savings depend on machine design, operator training, container differences, and the number of adjustments required.
Reducing changeover time allows manufacturers to improve production flexibility without unnecessarily sacrificing output.
6. Improve Reliability Through Preventive Maintenance
Unplanned downtime can disrupt the entire production process, particularly when a failure occurs at a critical or capacity-constrained station.
A structured maintenance program helps manufacturers protect equipment availability and reduce avoidable interruptions.
Establish a risk-based maintenance plan
Maintenance priorities should reflect equipment criticality, failure history, operating conditions, and the availability of replacement parts.
Recommended practices include:
Scheduling preventive inspections and lubrication
Monitoring wear on key mechanical components
Inspecting sensors, electrical connections, and pneumatic systems
Keeping essential spare parts available
Recording failure causes and corrective actions
Training operators to identify abnormal machine behavior
For automated packaging equipment, critical spare parts may include selected sensors, belts, bearings, cutting components, sealing components, and other model-specific wear parts.
The appropriate inventory should be determined by actual failure risk, supplier lead times, and the operational impact of a breakdown.
Make maintenance easier through equipment design
Maintenance accessibility should be evaluated during equipment selection, not after installation.
Accessible inspection points, clearly organized electrical cabinets, standardized components, and practical troubleshooting procedures can reduce service time.
When purchasing equipment, manufacturers should also clarify spare parts availability, technical documentation, remote support arrangements, and commissioning requirements.
These factors influence long-term operating costs just as much as the initial purchase price.
7. Incorporate Sustainability and Packaging Compliance
Sustainability has become an important consideration in beverage packaging decisions. Manufacturers need to balance material efficiency, package performance, product protection, recyclability, and total operating cost.
Reduce packaging material consumption
Packaging optimization can help manufacturers reduce material usage without compromising product protection or transportation performance.
Depending on the application, opportunities may include:
Optimizing shrink film thickness and package configuration
Reducing unnecessary secondary packaging material
Selecting carton designs that use material efficiently
Evaluating recyclable or recycled-content materials where suitable
Improving packaging consistency to reduce rejected products
Sustainable packaging materials should be assessed against actual product requirements, local recycling infrastructure, applicable regulations, and the performance of the complete packaging system.
For example, reducing film thickness may lower material consumption, but the revised specification must still provide adequate package stability and protection throughout distribution.
Improve resource efficiency
Energy and water efficiency also affect the overall sustainability of beverage manufacturing.
Depending on the production process, manufacturers may evaluate variable-frequency drives, optimized compressed-air systems, heat recovery, water reuse, and more efficient cleaning cycles.
Filling, processing, sterilization, and CIP systems require application-specific engineering. Improvements in these areas should be evaluated across the complete process rather than assumed to result from packaging equipment upgrades alone.
Verify applicable standards and regulations
Beverage manufacturers must ensure that equipment, packaging materials, and finished products comply with the requirements applicable to their products and target markets.
Depending on the application, this may involve food-contact material requirements, hygiene design, traceability, packaging waste regulations, and relevant national or regional standards.
FDA requirements, EU regulations, and industry hygiene guidelines are not interchangeable certifications. Compliance should be verified against the specific equipment configuration, materials, production process, and intended market.
A qualified equipment supplier should clearly identify the documentation and compliance information available for its supplied scope.
8. Prepare for Future Developments in Beverage Manufacturing
Digital technologies and advanced automation are creating new opportunities for manufacturers to improve operational visibility and production flexibility.
However, the value of emerging technologies depends on whether they solve a defined production problem.
Robotics and automated handling
Robotic systems can support case packing, palletizing, product handling, and selected inspection applications.
Their potential benefits include repeatable handling, reduced manual lifting, and the ability to manage demanding production schedules.
The correct configuration depends on payload, cycle time, package dimensions, available space, and integration with existing equipment.
Machine vision and automated inspection
Vision systems can inspect selected product or packaging characteristics, such as label position, cap presence, package appearance, or code readability, when supported by the inspection configuration.
Automated inspection can improve consistency and reduce dependence on manual checks, but detection accuracy must be validated against actual product variations and operating conditions.
Digital twins and AI-assisted optimization
Digital twins can model production systems to help engineers evaluate layouts, material flow, and selected operating scenarios before implementing physical changes.
AI-based analytics may also help identify recurring downtime patterns or potential process bottlenecks when sufficient reliable data is available.
These technologies are not prerequisites for every efficient beverage line. Manufacturers should prioritize proven improvements in capacity balance, equipment reliability, and packaging flow before investing in advanced digital systems without a clear business case.
9. How PEIYU Packaging Supports Efficient Beverage Packaging Lines
Selecting the right machines is only one part of building an efficient production system. Manufacturers also need to consider equipment compatibility, line layout, packaging requirements, and the ability to expand as demand grows.
PEIYU Packaging focuses on packaging machinery and integrated packaging line solutions for beverage and other manufacturing applications.
With more than 20 years of machinery R&D and manufacturing experience, PEIYU supports manufacturers seeking practical solutions for container labeling, secondary packaging, conveying, and end-of-line automation.
Packaging equipment for different production requirements
Depending on the project scope, PEIYU's packaging solutions include:
Sleeve labeling machines: For shrink-sleeve applications across suitable container shapes and sizes.
Hot melt labeling machines: For roll-fed OPP/BOPP labeling applications.
Shrink wrapping machines: For suitable multipack and secondary packaging formats.
Wraparound case packers: For automated carton forming and product packing.
Palletizing systems: For automated handling of finished cases.
Conveying and integrated packaging systems: For coordinating product movement between packaging stations.
These equipment categories can be evaluated individually or as part of a broader packaging line project, subject to the required configuration and agreed supply scope.
Flexible configurations for changing packaging needs
Different beverage producers have different requirements for bottle formats, label designs, multipack configurations, carton sizes, and production capacity.
PEIYU works with customers to assess application requirements and identify suitable packaging equipment configurations.
Key project considerations include:
Product and container specifications
Required production speed
Label and secondary packaging formats
Available installation space
Compatibility with existing upstream and downstream equipment
Future capacity expansion plans
This approach helps manufacturers evaluate equipment based on their real production needs rather than selecting machines solely by headline speed or purchase price.
From individual machines to integrated packaging systems
For manufacturers upgrading an existing factory or developing a new packaging area, an integrated approach can help simplify equipment coordination and project planning.
Depending on the agreed project scope, PEIYU can support the selection and integration of packaging modules designed to work together across labeling, secondary packaging, conveying, and palletizing operations.
The objective is to help customers build a packaging system that meets current requirements while providing a practical path for future expansion.
Conclusion: Build a Beverage Line for Performance Today and Growth Tomorrow
Efficient and scalable beverage line production systems are built on coordinated equipment, balanced throughput, reliable automation, effective maintenance, and a packaging strategy that can adapt to changing demand.
Manufacturers evaluating a new line or upgrading an existing facility should look beyond individual machine specifications. The most important questions are whether the equipment works effectively as a system, whether the packaging format meets market requirements, and whether the design supports future production goals.
From filling and labeling to secondary packaging and palletizing, each decision contributes to the performance of the overall operation.
Ready to optimize your beverage packaging line?
Contact PEIYU Packaging to discuss your bottle formats, required production capacity, labeling requirements, and end-of-line packaging needs. Our team can help you evaluate suitable packaging machinery and integrated packaging solutions for your project.
Visit www.beveragepackingmachine.com or email marketing@pyspc.com to discuss your requirements and request a customized quotation.
Frequently Asked Questions
1. What determines the efficiency of a beverage production line?
Efficiency depends on balanced machine capacity, stable material flow, appropriate automation, effective maintenance, and reduced downtime. The performance of the complete line matters more than the rated speed of any single machine.
2. How can beverage manufacturers increase packaging line output?
Manufacturers can identify bottlenecks, optimize conveyor flow, improve equipment synchronization, reduce changeover time, and automate labor-intensive packaging operations. The most effective improvements depend on the current line layout and production data.
3. What equipment is commonly used in an automated beverage packaging line?
A packaging line may include labeling machines, conveyors, shrink wrappers, wraparound case packers, inspection equipment, and palletizing systems. The final configuration depends on the container type, packaging format, required output, and project scope.
4. How can a beverage packaging line support future expansion?
A scalable design considers spare floor space, utilities, equipment interfaces, control integration, and potential capacity constraints. Modular equipment and planned expansion points can make future upgrades easier to implement.
5. How do manufacturers choose between sleeve labeling and hot melt labeling?
Sleeve labeling is suitable for applications requiring shrink sleeves and extensive container coverage, while hot melt labeling is commonly used for roll-fed OPP/BOPP labels. The right choice depends on container geometry, label design, production speed, material requirements, and total operating cost.
6. Can PEIYU Packaging provide a complete beverage production line?
PEIYU specializes in packaging machinery and integrated packaging line solutions, including labeling, secondary packaging, conveying, and palletizing. The availability of a complete turnkey scope, including filling and processing equipment, should be confirmed for each project.
Ready to discuss your project? Contact PEIYU Packaging for application-specific equipment recommendations and a customized quotation.
エチオピアの包装機械 |食品および飲料の包装ソリューション |ペイユ
東アフリカで最も急速に成長する製造業市場の一つであるエチオピアは,食品,飲料,消費財の生産者にとって新しい機会を創出しています.産業投資生産性を向上させながら 製品品質を一貫して維持するために より効率的な生産方法を探しています
包装の自動化が この変革の不可欠な部分になりました 瓶のラベルと収縮包装からケースの包装とパレット化まで現代の包装機械は,製造業者が労働コストを削減するのに役立ちます生産効率を向上させ,より高い品質基準を満たします.
エチオピア2026年 アグロフード&プラストプリントパックで PEIYUは東アフリカ各地から 製造業者や 流通業者,業界専門家と出会う機会がありました急速に発展する包装産業について貴重な知見を得ること.
エチオピア が 梱包 機械 市場 に なる 理由
エチオピアは東アフリカの最も有望な製造業の中心地の一つになりました 食品加工,飲料生産,医薬品,家庭用製品,信頼性の高い包装機器の需要を推進しています.
この 増加 に 貢献 し て いる 事柄 は 幾つ か あり ます.
食品・飲料製造能力の拡大
瓶詰め 水,ソフトドリンク,ジュース,乳製品,食用油 の 需要 が 増加 し て いる
産業自動化の普及拡大
生産効率と製品の一貫性への重点が増加
東アフリカ全域の地域配給拡大
製造業者が生産を拡大するにつれ 自動パッケージングシステムが 手作業の代わりとなり 生産量を向上させ 停滞時間を短縮し 包装の品質を維持しています
製造 者 の 包装 に 関する 共通 の 課題
エチオピアや近隣の市場の多くの製造業者は,同様の生産課題に直面しています.
労働費の上昇と労働力不足
手動パッケージの品質が不一致
需要のピーク時に生産能力が限られている
製品が頻繁に交換される
古い機器の保守の要求が増える
パッケージの外観と製品の安全性に対する顧客の期待が高まる
現代の包装機械は 安定した高速で柔軟な 生産ソリューションを提供することで これらの課題を解決するのに役立ちます 異なるボトルタイプやパッケージサイズ,製品カテゴリーに適しています
エチオピアの食品・飲料産業のためのパッケージングソリューション
PEIYUは飲料,食品,乳製品,家庭用品,パーソナルケアメーカー向けに設計された完全なパッケージングソリューションを提供しています.
スリーブラベル付け機械
縮小袖ラベル付け機は,PETボトル,ガラスボトル,缶詰,および特別な形容量の容器に360度ラベルを付けます.それらは,ボトル水,炭酸飲料,ジュース,乳製品茶の飲み物や食用油
主要な利点は以下です.
高速生産
ラベルの正確な位置
安定した運行
迅速なボトル交換
様々な容器形と互換性
OPP ホットメルト・ラベル付け機械
大量飲料生産では,OPPの熱溶融ラベル付け機は効率的で経済的なラベル付けソリューションを提供します.
応用には以下が含まれます.
瓶詰め水
飲料水
ジュース
エネルギー飲料
機能飲料
このシステムは,材料の消費と運用コストを削減しながら,正確なラベルの適用を実現します.
フィルム包装機
自動フィルム包装機は,輸送と配送の前にボトルに詰め込まれた製品の安全な二次包装を提供します.
下記に適しています.
瓶詰め水
飲料の多重包装
家庭用化学物質
乳製品
利点は以下の通りです.
縮小された包装材料
高速運転
安定した束の形成
輸送コストの低減
オートマティック 紙箱 包装 システム
包装用ケースパッカーでは,ボトルを自動で波紋紙の箱にまとめ,手作業を削減しながら,パッケージの効率を向上させます.これらのシステムは複数の紙箱スタイルと生産能力をサポートします生産施設を育てるのに適している.
パレット化ソリューション
自動 パレティ化 システム は,完成品 を 正確 で 一貫 的 に 積み重ねる こと に よっ て,ライン の 終わり の 作業 を 簡素 に する.
利点は以下の通りです.
労働力要求が低い
積み重ねの精度が高い
倉庫の効率の向上
生産継続性の向上
製造 業 者 が 梱包 自動化 に 投資 する 理由
パッケージの自動化は 生産プロセス全体で 測定可能な改善をもたらします
製造者は以下から恩恵を受けることができます.
生産効率の向上
運用コスト削減
一貫したパッケージング品質
製品廃棄物の減少
生産の柔軟性
製品交換を速める
設備の信頼性の向上
長期投資収益性
市場の需要が増加し続けると 自動化により 競争力を維持するために必要な拡張性が 製造業者に提供されます
エチオピア2026年における農産物・プラスチックプリントパックにおけるPEIYU
PEIYUは2026年6月25日から27日にかけてアディスアベバで開催された農業食品とプラスチックプリントパックエチオピア2026に参加することを誇りに思いました.
この展示会では,東アフリカ各地から食品・飲料メーカー,包装専門家,業界パートナーと交流する機会が提供されました.面談を通して地域生産のニーズや投資動向,そして将来の自動化ニーズについて 貴重な洞察を得ました
地域における包装業界に対する理解を深め 実践的で信頼性の高い世界各地の製造業者向けに.
私たちのブースを訪れて 生産課題や プロジェクト計画や ビジネス目標を共有してくれた皆さんに 心から感謝しますエチオピアとアフリカ市場を広げていくため.
未来 を 見る
東アフリカの製造業は 発展を続けていて 現代の包装技術に投資する企業にとって 重要な機会を生み出しています生産量が増加し,品質の期待が上昇するにつれて効率と競争力を向上させる上で,インテリジェント・オートメーションがますます重要な役割を果たす.
PEIYUは,製造者が持続可能な成長を達成するのに役立つカスタマイズされたパッケージング機械,プロのエンジニアリングサポート,そして完全なターンキーソリューションを提供することに引き続きコミットしています.
新しい生産ラインを建設するか,既存の施設をアップグレードするか,私たちのチームはあなたの生産要件に最適なパッケージングソリューションを特定するのに役立ちます.
あなたのパッケージングプロジェクトのために PEIYU に連絡してください
食品や飲み物の生産ラインに 信頼性の高い包装機械を探していますか?
PEIYUは以下を含む完全なパッケージングソリューションを提供しています.
収縮袖のラベル付け機
OPP ホットメルト・ラベル付け機械
セルフアデッシブ・ラベル・マシン
フィルム包装機
オートマティック・カートン・パッケージング・マシン
パレット化システム
トンキー コンプリート 梱包ライン
今日,エンジニアチームに連絡して 生産能力,ボトルの種類,包装形式,自動化要件について話し合います効率を向上させるパッケージングソリューションを構築できます運用コストを削減し 長期的なビジネス成長を支援します
↓
ペット用湿食は 基本食品の新たな戦場になる ペッパーリーは ペット用食品のリーダー グアイバオグループと協力
湿ったペットフードが 基本食品の新たな戦場になるペット市場では 湿った食品が 主要な食材となっている傾向は明らかです中国のペット産業は 一世代に渡る利益を生み出し 今日のペット産業は 複合金利で成長し続けます過去3年間の研究データによると 湿った食品の基本食品の傾向は明らかで 可能性が高いチャンスですペットの飼い主が消費量を向上させるための主要な方向性ですTmall Double 11 が示すペット製品の動向によると,基本食品のカテゴリでは,まず,猫市場が犬市場よりも成長しています.ペット用品の高級化傾向は明らかです製品品質の継続的な向上と技術革新により,ペット消費者の個人化と品質のニーズを満たしています.湿食市場が +70%成長しましたJD.comとニールセンが発表した"中国のペット消費傾向年次報告書"によると,オンラインでトップ5の犬や猫の乾燥食品とスナック消費の増加率は,上位3位は全て猫用食品です猫のスナックが先行し,その後は猫のドライフード,そしてネコのメインフードの缶がダークホースカテゴリーになり,犬のスナックと犬のドライフードを上回っています.CBNの消費ビッグデータによると 90代後と95代後という 2つの年齢層のペット消費の割合は 年々上昇傾向にあります1990年代に生まれたペット飼い主の数は増加しましたチェーン専門診療所が急速に発展しています.他の年齢層よりも口コミやコスト効率に より多くの注意を払っていますさらに,国内食品の割合は過去3年間で著しく増加し,輸入食品の一部を代替し,市場シェアの半分以上に達しています.グアイバオペットフードグループ (Guaibao Pet Food Group Co., Ltd.) は2006年に設立され,主にペットフードの研究開発,生産および販売に従事しています.主な製品はペット・ドッグ・キャット・スタンプフードシリーズ,スナックシリーズと保健品シリーズ. Mai Fu Diは,Guaibaoグループのプライベートブランドです. Mai Fu Diは,常に天然で高品質の世界のペットフードの高い基準を遵守します.ペットの愛や仲間の文化を擁護しています.
山東ハノウバイオテクノロジー株式会社は,犬用食品,猫用食品,ペット用缶詰食品,冷凍乾燥スナック,サンプル生産および加工を"ペットをサービスする"というコンセプトでOEMにコミットしています.2015年, 製品は輸出資格を取得し,市営のリーダー企業という称号を獲得しました. 何年もの間,ハヌは,消費者の信頼に値するペット製品会社になることを約束してきました.質の高い建設の目的を堅持する品質を重視し,自己改善,そして誠実な天然鮮肉食品,そして常に非常に熱心なサービスで顧客のニーズを満たす.
ペイユはグアイバオ企業と協力し,2019年にカスタマイズされた1万9200袋/時間,ミオシアンバオ湿食生産ライン全自動不妊システムを提供しました.
2021年,ハンヌ社に缶詰の湿食を供給し,1時間あたり14400缶詰の湿食を生産した.全ラインプロジェクトは成功裏に稼働を開始した.袋詰め製品生産ラインは,インストールされ,デバッグされています.包装業界で 17年の設計と製造経験を持つペイユ・エンタープライズは ペットフード生産ライン産業に先進的な自動包装コンセプトを導入し続けています.ライン全体の自動制御は多くの利点をもたらします.1) 労働コストを削減し,企業における人材不足の問題を解決する.(2) 生産プロセスを標準化し,一貫性,衛生,安全等において製品の品質を向上させる.(3) 生産過程が追跡可能であること4) 機械は安定して動作し,全ラインは高い生産効率を持っています.
機械設計と製造における長年の経験により,ペイユは現在,成熟し安定した梱包機械と設備の数百を持っています. covering hot melt glue labeler,Sleeve labeler,Shrink packer,wrap around case packer,beverage palletizer,bottle depalletizer machine,packaging labeling machine,box erector machine,Case packing machine,case sealer machine,bottle filling and capping machine,bottle conveyor system,Sterilization retort,Loading and unloading cage system, bottle dryer machine,bottle Lane Separator,Bottle sterilization conveyor line,Spray Cooler & Bottle Warmer,bottle blow moulding machine, bottle cap feeder,bottle cap making machine,Capping Machine, packaging inspection machine,Weighing and testing machine,bottle washing machine,vertical package conveyor,Film Blowing machine,Stretch Wrappers,packaging auxiliary equipmentそして様々な生産ライン,水瓶包装機,飲料包装機,缶詰食品包装機,ペットフード包装機,調味料包装機器,ビール包装機.
製品分類と産業分類の観点から,Peiyuの製品には3対1のアルミボトル詰め機シリーズ,殺菌機シリーズ,缶 (ボトル) 卸載機シリーズ,完全に自動的な積載と卸載ケージシリーズ完全自動スタッキングと卸荷シリーズ,袖ラベルシリーズ,ラベルシリーズ,梱包シリーズ,輸送,空気輸送システムなど同社の製品は,様々な飲料缶 (ボトル) に広く使用されています乳製品,純粋な水,調味料,アルコール,油製品,化粧品,医療その他の関連産業
熱烈に祝う シェンシ・ペイユ・エンタープライズの子会社である ペイユ・パッケージング・テクノロジー研究所の中国機械技術者協会の上級会員になりました
熱烈に祝う シェンシ・ペイユ・エンタープライズの子会社である ペイユ・パッケージング・テクノロジー研究所の中国機械技術者協会の上級会員になりました温かく祝います 山西ペイユ包装技術研究所のライ・ホウアン会長は 中国機械技術者協会に加わり,その上級会員になりましたペイユは,機械工学研究における学術交流を拡大するために,協会のプロフェッショナルプラットフォームを使用します.技術理論と実用的な経験を組み合わせて シェンシ・ペイユ包装技術研究所は国内で技術的に先進的なパッケージング機器を 独自に開発しました機動制御の第5世代ラベルリングマシン,カスタマイズされたガラスボトルギフトボックスパッケージングマシンこの機器は,有名な飲料会社,例えば,ユアンキ・フォレスト,ジンマイラング,ジアンリバオ,上海・ジクアン・ビビリー,ヤンユアン・ジフイ生産ラインの全体的な効率は96%に達し,単機容量は99.9%に達します.
現在,ペイユ・エンタープライズは2人の上級技術者,3人の中級技術者,2人の中国機械技術者協会の上級メンバー,そして数人の一般メンバーを擁しています.中国機械技術者協会とは どんな社会でしょうか?中国機械技術者協会は1936年に設立され,全国的な学術,技術,技術学研究機関です.機械科学技術労働者が自発的に設立し,法的に登録した非営利社会団体機械工学および関連分野における科学研究,設計,製造,教育および管理に従事するユニットおよびグループ.中国科学技術協会の構成要素です中国機械技術者協会は 私の国の最古で最大の技術学会の一つです It has been rated as a "national advanced social organization" by the Ministry of Civil Affairs many times and has been rated as an "advanced society" by the China Association for Science and Technology for many consecutive years2015年,全国社会組織評価で5A等級を受賞した.ペイユは技術者の業績を誇りに思う.ペイユ・エンタープライズは将来も生産機器と研究開発に 大きく投資を続けます国内パッケージング機器の分野を発展させ,国内機器が国際的先進レベルに追いつくよう努め続けましょう!
機械設計と製造における長年の経験により,ペイユは現在,成熟し安定した梱包機械と設備の数百を持っています. covering hot melt glue labeler,Sleeve labeler,Shrink packer,wrap around case packer,beverage palletizer,bottle depalletizer machine,packaging labeling machine,box erector machine,Case packing machine,case sealer machine,bottle filling and capping machine,bottle conveyor system,Sterilization retort,Loading and unloading cage system, bottle dryer machine,bottle Lane Separator,Bottle sterilization conveyor line,Spray Cooler & Bottle Warmer,bottle blow moulding machine, bottle cap feeder,bottle cap making machine,Capping Machine, packaging inspection machine,Weighing and testing machine,bottle washing machine,vertical package conveyor,Film Blowing machine,Stretch Wrappers,packaging auxiliary equipmentそして様々な生産ライン,水瓶包装機,飲料包装機,缶詰食品包装機,ペットフード包装機,調味料包装機器,ビール包装機.
製品分類と産業分類の観点から,Peiyuの製品には3対1のアルミボトル詰め機シリーズ,殺菌機シリーズ,缶 (ボトル) 卸載機シリーズ,完全に自動的な積載と卸載ケージシリーズ完全自動スタッキングと卸荷シリーズ,袖ラベルシリーズ,ラベルシリーズ,梱包シリーズ,輸送,空気輸送システムなど同社の製品は,様々な飲料缶 (ボトル) に広く使用されています乳製品,純粋な水,調味料,アルコール,油製品,化粧品,医療その他の関連産業
ラベル付け機械のいくつかの一般的なラベル付け方法
ラベル付け機械のいくつかの一般的なラベル付け方法社会が発展するにつれ,機械化された機器が肉体労働を代替する傾向はますます明らかになっています.自動ラベル付け機械は,手作業による労働を代替し,手作業によるラベル付け効果の低下や労働を要するラベル付けなどの実用的な問題を解決する市場には多くの種類のラベル付け機がありますが,ラベル付け機にはわずか数種類のラベル付け方法があります.レーベルを貼る機械のためのいくつかの一般的なレーベル方法を見てみましょう.擦り付けの原理: ラベルを貼る際に,ラベルの先端がパッケージに粘っているとき,製品はすぐにラベルを外します.このタイプのラベル機では,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼る際に,ラベルを貼この方法は,パッケージの通過速度がラベルの配布速度と一致する場合にのみ成功します.これは継続的な動作を必要とする技術であるため,そのラベルの効率は大幅に向上し,それは主に高速自動化製薬包装生産ラインに適しています.標識付け機械のラベルの先端が製品に固定されると,製品はすぐにラベルを取り去ります.この方法の利点は,ラベルの速度が速いことです.標識の正確さは,標識の機械を通過する製品速度と標識の配布速度に依存する.. 2つの速度が同じなら,ラベル付けの精度は高く,そうでなければ,ラベル付けマシンの精度は影響されます.
吸入方法の動作原理: 標識付け機械のラベル紙がコンベアベルトから出ると,真空パッドに吸い込まれます.機械装置の端に接続されているものメカニカル装置がラベルが製品に接触するまで伸びると,それは縮小し,ラベルは製品に固定されます.この方法の利点は高精度であり,複雑な包装製品のラベル処理に適しています■ 標識付けの速度が遅いし,質が悪い.
吹き込み方法の動作原理:吸着方法に基づいて改善されています.違いは真空パッドの表面が静止していることです.標識が固定され"真空格子"に配置され"真空格子"は,何百もの小さな穴で覆われた平面である.小さな穴は"空気ジェット"の形成を維持するために使用される.圧縮空気の流れは,これらの"空気ジェット"によって吹かれます.プレッシャーはとても強いこのメソッドの利点は高精度と信頼性です.欠点は複雑なプロセスと高コストです.
上記は,ラベル付け機械の一般的なラベル付け方法です.それはあなたに役立つことを願っています. 上海ペイユ機械製造株式会社包装機械を製造する機器は,ステリライザーシリーズ,袖ラベルマシンシリーズ,ラベルマシンシリーズ,カートニングマシンシリーズ相談を歓迎します.
機械設計と製造における長年の経験により,ペイユは現在,成熟し安定した梱包機械と設備の数百を持っています. covering hot melt glue labeler,Sleeve labeler,Shrink packer,wrap around case packer,beverage palletizer,bottle depalletizer machine,packaging labeling machine,box erector machine,Case packing machine,case sealer machine,bottle filling and capping machine,bottle conveyor system,Sterilization retort,Loading and unloading cage system, bottle dryer machine,bottle Lane Separator,Bottle sterilization conveyor line,Spray Cooler & Bottle Warmer,bottle blow moulding machine, bottle cap feeder,bottle cap making machine,Capping Machine, packaging inspection machine,Weighing and testing machine,bottle washing machine,vertical package conveyor,Film Blowing machine,Stretch Wrappers,packaging auxiliary equipmentそして様々な生産ライン,水瓶包装機,飲料包装機,缶詰食品包装機,ペットフード包装機,調味料包装機器,ビール包装機.
製品分類と産業分類の観点から,Peiyuの製品には3対1のアルミボトル詰め機シリーズ,殺菌機シリーズ,缶 (ボトル) 卸載機シリーズ,完全に自動的な積載と卸載ケージシリーズ完全自動スタッキングと卸荷シリーズ,袖ラベルシリーズ,ラベルシリーズ,梱包シリーズ,輸送,空気輸送システムなど同社の製品は,様々な飲料缶 (ボトル) に広く使用されています乳製品,純粋な水,調味料,アルコール,油製品,化粧品,医療その他の関連産業
ラベル付け機械の清掃
ラベル付け装置の清掃:
機器の安定した動作を確保するために,ラベル付け機械は使用中にいくつかの単純な清掃操作を実行します.しかし,清掃の順序に注意を払う必要があります.レーベルの洗浄順序は?1標識のプレート,スクラパー,グリーフンネル,グリーブバケツ,空気吹きパイプ,保護ドアを取り出して,浸泡車 (水温400°C~500°C,しかし,ラベルのプレートは別々に置かれ,40°Cを超える水に浸すことはできません).
2標識表の表面と粘着に富んだ領域を,アルカリ性洗浄剤水で濡れた布で覆う.
3. 大きなターンテーブル,ボトルトレイ,ラベルスイーパー,ラベルテーブル,柱ドア,マシントップ,ボトル分離プレート,スターホイール,護欄とプラットフォームなど
4. 湿った布でラベルボックス,ラベルドラムラベルクランプ,ラベル粘着パッドの残留の粘着剤を掃除します.
5. 湿った布でラベルドラムの表面を掃除します. 水で洗浄したり直接浸かしたりすることは厳禁です.
さらに,ラベル付け機が使用中に以下の問題に直面した場合,ユーザーは以下の方法を参照して解決することができます.
1ラベルの裂け目:ラベルが切断で完成した製品に作られた後,ベース紙は通常より広く残されます.標識の使用時に標識をより簡単に外すことができます.処理や輸送の過程で,この余剰の縁の部品は裂け,小さな亀裂を引き起こす.また,自動ラベル加工過程でラベル加工機自体も一定の緊張を伴うため,この緊張下でラベルを壊すのも簡単です
2. 切断の質が悪い:切断の質は,ラベルが撕裂するかどうかを大きく影響します.切断圧が高くすぎると,ベース紙が割れます.通常,切断の質は,ラベルが切断される前に切断される.切断で生じる裂け目により裂け目で切断ラインの位置はより整然とされます.
3. 粘着剤の浸透: 粘着剤の浸透は,ラベルがあまりにも緊密に巻き戻され,乾燥していない粘着剤が圧縮されるため引き起こされます.
上海ペイユ機械製造株式会社 (株) は,ラベル付け機械,ラベル付け機械,カートニング機械,滅菌機,パレタイザー,缶詰卸機などのパッケージング機械を提供しています.機器には,ステリライザーシリーズが含まれます.,ラベル付けマシンシリーズ,ラベル付けマシンシリーズ,カートニングマシンシリーズ,パレティライザーシリーズ,など,相談を歓迎します.
機械設計と製造における長年の経験により,ペイユは現在,成熟し安定した梱包機械と設備の数百を持っています. covering hot melt glue labeler,Sleeve labeler,Shrink packer,wrap around case packer,beverage palletizer,bottle depalletizer machine,packaging labeling machine,box erector machine,Case packing machine,case sealer machine,bottle filling and capping machine,bottle conveyor system,Sterilization retort,Loading and unloading cage system, bottle dryer machine,bottle Lane Separator,Bottle sterilization conveyor line,Spray Cooler & Bottle Warmer,bottle blow moulding machine, bottle cap feeder,bottle cap making machine,Capping Machine, packaging inspection machine,Weighing and testing machine,bottle washing machine,vertical package conveyor,Film Blowing machine,Stretch Wrappers,packaging auxiliary equipmentそして様々な生産ライン,水瓶包装機,飲料包装機,缶詰食品包装機,ペットフード包装機,調味料包装機器,ビール包装機.
製品分類と産業分類の観点から,Peiyuの製品には3対1のアルミボトル詰め機シリーズ,殺菌機シリーズ,缶 (ボトル) 卸載機シリーズ,完全に自動的な積載と卸載ケージシリーズ完全自動スタッキングと卸荷シリーズ,袖ラベルシリーズ,ラベルシリーズ,梱包シリーズ,輸送,空気輸送システムなど同社の製品は,様々な飲料缶 (ボトル) に広く使用されています乳製品,純粋な水,調味料,アルコール,油製品,化粧品,医療その他の関連産業
ラベル付け機械の一般的な問題と解決策
ラベル付け機械の一般的な問題と解決策使用中のラベル付け機械には様々な問題があり,その中で最も一般的な問題はラベル付けの質の低下です.レーベルを貼る機械を正しく使う方法を学ぶだけでなく操作者が故障の原因を理解できれば,解決策は簡単になります. 下には,編集者は,そのような欠陥の原因と解決策を紹介します..
1. 標識を表示する際に横向きにくねる:
原因1:ボトルの形状が良くないので球状にラミネートされています. 解決策: スクラパー力を増やしたり,良いボトルを置き換えます.
理由2:ラベル付け速度が遅すぎたり,アセンブリラインの速度が速すぎたり; 解決策:ラベル付け速度を加速させたり,アセンブリラインの速度を遅らせたりする.
2. 標識を貼る際に垂直にくねる:
理由:ラベル付け速度が速いし,組み立てラインの速度が遅すぎる.解決策:ラベル付け速度を遅くしたり,組み立てラインの速度を速くしたり,つまりボトルウォーキング速度です.
3標識のしわの原因と解決策:
理由1: グラバーが平くない 解決策: 平らなグラバーを交換する
理由2: ラベルテープが太りすぎます 解決策: ラベルテープを適切に締めます
理由3: 剥削プレートの口はボトル表面に平行ではない. 解決策: 剥削プレートの口をボトル表面に平行するように調整する.
4レーベルの泡を解く方法:
理由1: 剥削板が良くない (不均等) 解決策: 良き平らな剥削板を入れ替える.
理由2: ラベル付け速度が速いか,アセンブリラインの速度が遅い. 解決策: ラベル付け速度を適切に減らし,アセンブリラインの速度を高速化する.
理由3: スクラパーが良くない (不均等); 解決策: フラット・スクラパーを交換する.
理由4: ラベルテープが太りすぎます 解決策: ラベルテープを適切に締めます.
5レーベルの前進と遅延は不安定です
原因1: 修正メカニズムが修正できなかった. 解決策: 各ボトルが正しく修正できるように修正メカニズムを調整する.
理由2:ボトル圧縮装置がボトルを緩すぎた状態に圧縮したり,スクラッパーがボトルをひどく引っ張ったりし,ラベル付け中にボトルが曲がったりします. 解決策:ボトルプレッシングメカニズムのプレッシング力を増やしたり,ラベル付け中にボトルが曲がらないように,スクレイパーの力を減らす..
理由3: 剥削プレートとボトル表面の間の角は小さすぎる. 解決策: 剥削プレートとボトル表面の間の角を増加させる.そして,剥離プレートとボトル表面の距離を調整します..
理由4: 剥離板がボトルに触れた; 解決策: 剥離板とボトルとの間の距離を,剥離板がボトルに触れないように調整する.
理由 5: ラベルベルトが強く押されている. 解決策: ラベルを押すスポンジを緩め.
上記は,ラベル付けマシンの一般的な欠陥の解決法です,それはあなたに役立つことを願っています.
機械設計と製造における長年の経験により,ペイユは現在,成熟し安定した梱包機械と設備の数百を持っています. covering hot melt glue labeler,Sleeve labeler,Shrink packer,wrap around case packer,beverage palletizer,bottle depalletizer machine,packaging labeling machine,box erector machine,Case packing machine,case sealer machine,bottle filling and capping machine,bottle conveyor system,Sterilization retort,Loading and unloading cage system, bottle dryer machine,bottle Lane Separator,Bottle sterilization conveyor line,Spray Cooler & Bottle Warmer,bottle blow moulding machine, bottle cap feeder,bottle cap making machine,Capping Machine, packaging inspection machine,Weighing and testing machine,bottle washing machine,vertical package conveyor,Film Blowing machine,Stretch Wrappers,packaging auxiliary equipmentそして様々な生産ライン,水瓶包装機,飲料包装機,缶詰食品包装機,ペットフード包装機,調味料包装機器,ビール包装機.
製品分類と産業分類の観点から,Peiyuの製品には3対1のアルミボトル詰め機シリーズ,殺菌機シリーズ,缶 (ボトル) 卸載機シリーズ,完全に自動的な積載と卸載ケージシリーズ完全自動スタッキングと卸荷シリーズ,袖ラベルシリーズ,ラベルシリーズ,梱包シリーズ,輸送,空気輸送システムなど同社の製品は,様々な飲料缶 (ボトル) に広く使用されています乳製品,純粋な水,調味料,アルコール,油製品,化粧品,医療その他の関連産業
上海ペイユ機械製造株式会社 (株) は,ラベル付け機械,ラベル付け機械,カートニング機械,滅菌機,パレタイザー,缶詰卸機などのパッケージング機械を提供しています.機器には,ステリライザーシリーズが含まれます.,ラベル付けマシンシリーズ,ラベル付けマシンシリーズ,カートニングマシンシリーズ,パレティライザーシリーズ,など,相談を歓迎します.
